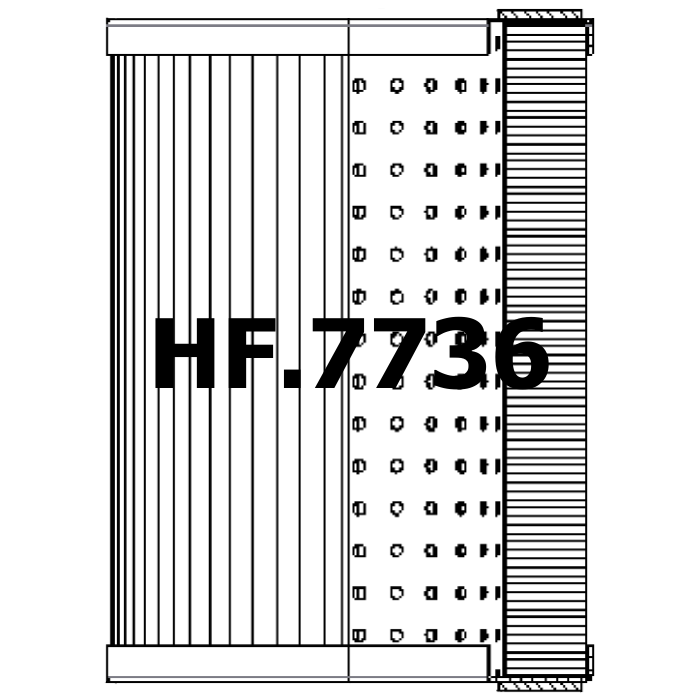

Hydraulic Filter

HF.7736

170,00 € Hinnat eivät sisällä arvonlisäveroa.

Oxfil code: HF.7736 Stock: On request
Available?

Add to list

Properties
Hakemus
Ristiviittaukset
Related Products

Element Collapse pressure (COL-P)

10 bar

Filtration Media (FILT-MED)

Wire Mesh 13 µm

Flow direction (FLOW-DIR)

Out-In

Height-1 (H-1)

1.5 mm

Total Height (H-TOTAL)

205 mm

Seal (SEAL)

NBR

Largest Inner Diameter (Ø IN-MAX)

94 mm

Smallest Inner Diameter (Ø IN-MIN)

90 mm

Outer Diameter (Ø OUT)

145 mm

Largest Outer Diameter (Ø OUT-MAX)

150 mm

Stat. HS-Code

84149000

Order information

How to order?

1. Select your country and language, above.
2. Add items to your list with the "Plus icon".
3. Click on the List icon to open then press "order".
4. Enter your email address and press "Continue".
5. Enter the necessary data.
6. You will receive the Pro forma invoice by email within 24h.
Shipping costs

First, select your country above.
Payment

- You can NOT pay on this website.
- We will send you an invoice via email within 24h.
- Payment method: Bank transfer or Credit card PayPal (+6%)
- Payment condition: 100% Prepayment.
How to get a quotation?

1. Select your country and language, above.
2. Add items to your list with the "Plus icon".
3. Click on the List icon to open then press "Quotation".
4. Enter your email address and press "Continue".
5. Enter the necessary data.
6. You will receive the Quotation by email within 24h.

Professionals care for their equipment, they use Oxfil® high performance filters! Long life, low pressure loss and high filtration grade. Solely use the names, brands and trademarks listed to cross reference the correct Oxfil® high performance replacement. Oxfil® products are mainly produced in the EU according to OEM standards. Oxfil.com is a portal for placing orders or requesting quotations by the professional industry.

Catalog

Products

Help

About

HF.7736

Add to list

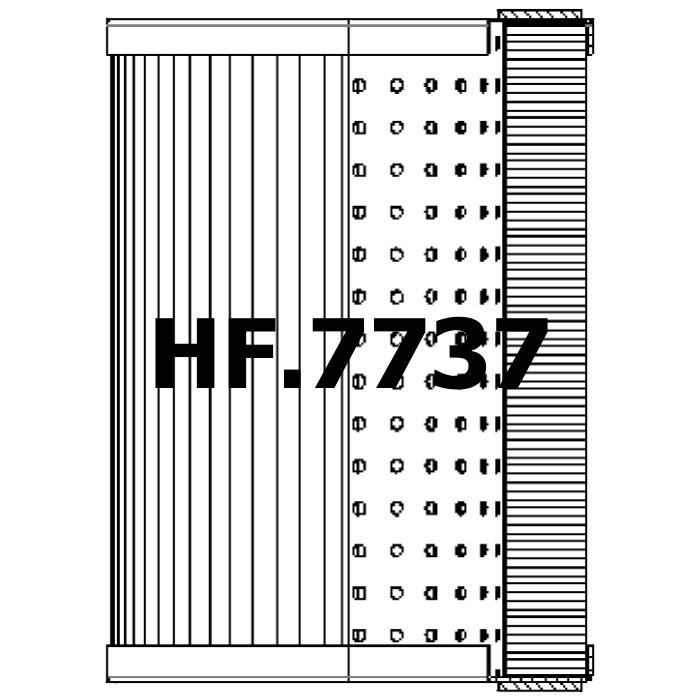

HF.7737 Hydraulic Filter

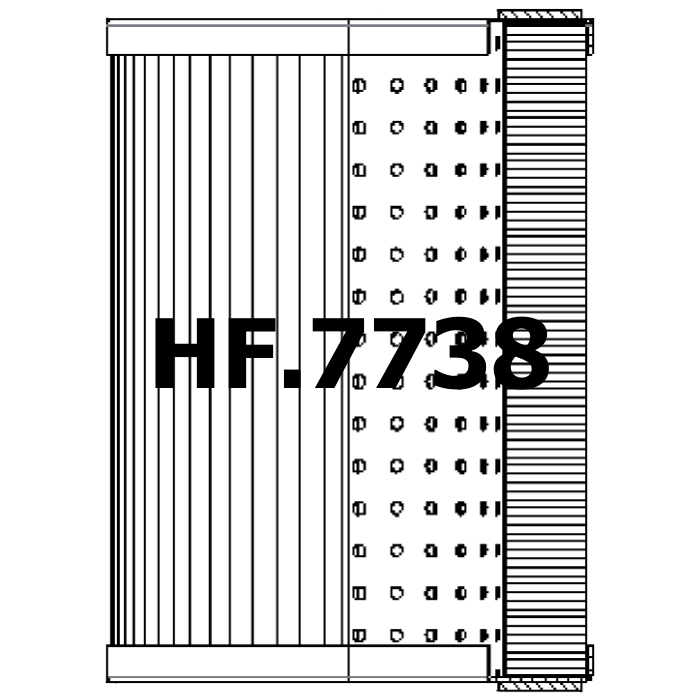

HF.7738 Hydraulic Filter
